Cable and Pipe Bedding Sand

Pipe Bedding Sand is a washed material produced from our Two Oaks Quarry. It is a fine grade sand making it perfect for backfill, a free-flowing sand that surrounds the pipes and cables effortlessly, making installation easier and stone/aggregate free.

The sand dissipates heat rapidly – keeping underground pipes cool. The sand retains a consistent grading – no movement once compacted.

It can also be used as a fill sand for many projects, often used as a base for concrete and to fill around septic tanks.

It is also an option for landscaping projects which involve creating pools or waterfalls.

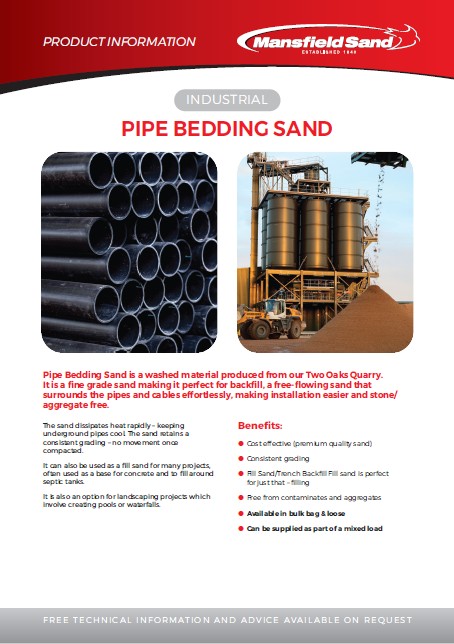

Product Information & Specification Sheet:
Download PDF
Pipe Bedding Sand (1.36MB PDF)
Pipe Bedding Sand
CATEGORYParticle Size Typ % retained
4.00mm 0.0
2.00mm0.0
VERY COARSE SAND 1.00mm0.0
COARSE SAND500um0.2
MEDIUM SAND 250um6.2
FINE SAND 125um 44.8
FINE SAND 150um 15.4
VERY FINE SAND63um 28.0
SILT-63um 4.2
ClayClay1.2
TYPICAL ANALYSIS
Moisture Content 9.20% w/w
Organic Content6.8
pH Value (H2O) 6.8
Sat. Hydraulic Conductivity 175 mm/hr
Fibre Content (pp) n/a
GFNn/a
D90-
D10-
D90/D10-
D eff-
