Pavior Sand (also known as Kiln Dried Sand or Jointing Sand) is used for brushing in-between joints of all types of block paving, creating a close and tight bond, adding stability to the block paving.
- Pavior Sand (the key to a perfect finish)
- Silica Sand ensures that the water can drain away freely through the laying course and sub-base preventing the build-up of surface water
- Non-staining
- The sand complies with BS 7533-3:2005 Table D.4
- The Silica Sand is a sub-angular grain
- The sand is classified as a medium grade sand (Mansil 40)
- The sand colour is best described as ‘buff’
- Available in 20kg, 25kg, bulk bag, loose & tankered
- Can be supplied as part of a mixed load
Coverage:
50mm Block Thickness = Approx. 7.6 sqm/25kg bag
60mm Block Thickness = Approx. 5.6 sqm/25kg bag
80mm Block Thickness = Approx. 4.4 sqm/25kg bag

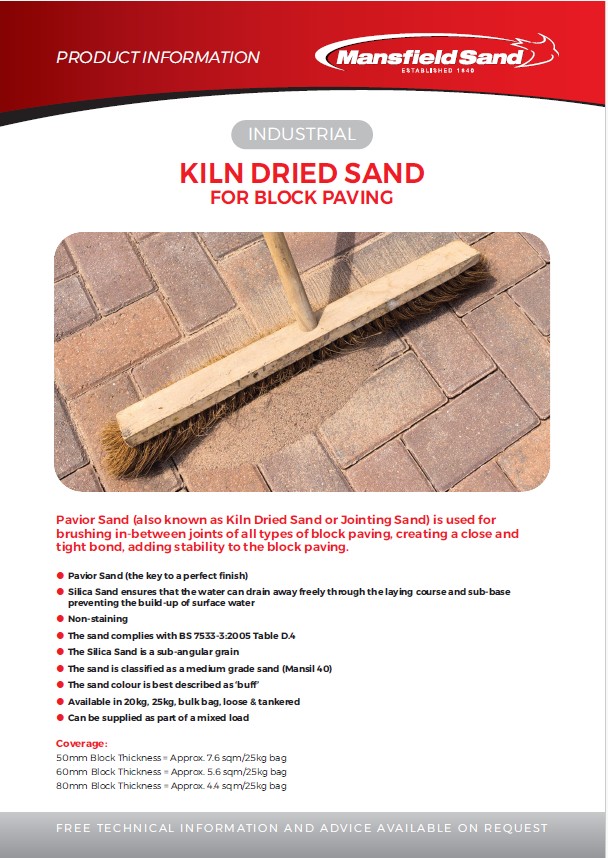

Product Information & Specification Sheet:
Kiln Dried Sand
(1.49 MB PDF)
KILN DRIED SAND

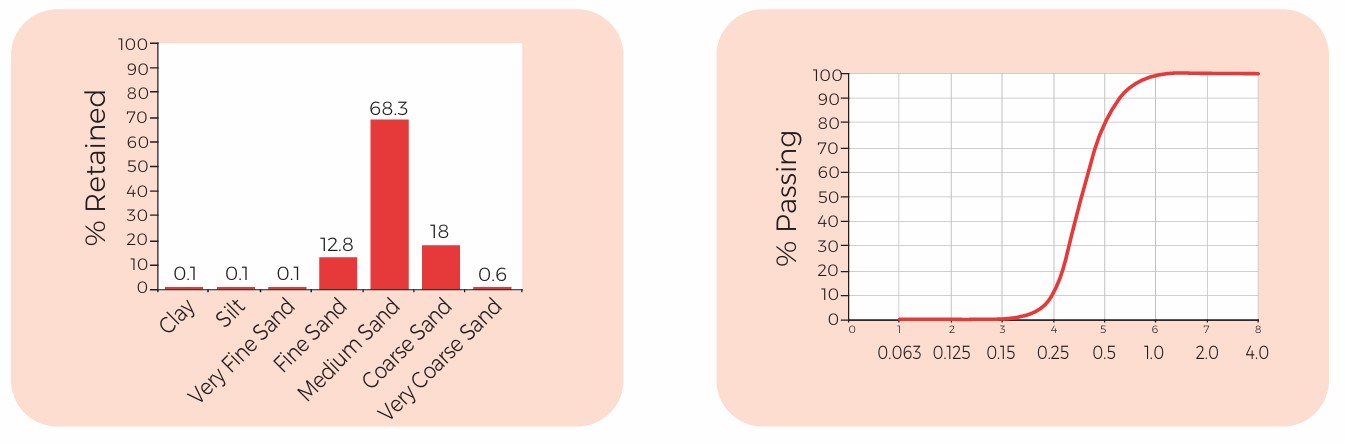

| CATEGORY | Particle Size | Typ % retained |
|---|---|---|
| 4.00mm | 0.0 | |
| 2.00mm | 0.6 | |
| VERY COARSE SAND | 1.00mm | 2.2 |
| COARSE SAND | 500um | 12.0 |
| MEDIUM SAND | 250um | 59.0 |
| FINE SAND | 125um | 20.2 |
| FINE SAND | 150um | 14 |
| VERY FINE SAND | 63um | 18 |
| SILT | -63um | 0.6 |
| Clay | Clay | 2.2 |
| TYPICAL ANALYSIS | |
|---|---|
| Moisture Content | 10.5% w/w |
| Organic Content | 3.7% w/w |
| pH Value (H2O) | 7.2 |
| Sat. Hydraulic Conductivity | 243 mm/hr |
| Fibre Content (pp) | 0.45% w/w |
| GFN | n/a |
| D90 | 600 |
| D10 | 180 |
| D90/D10 | 3.3 |
| D eff | 260 |
